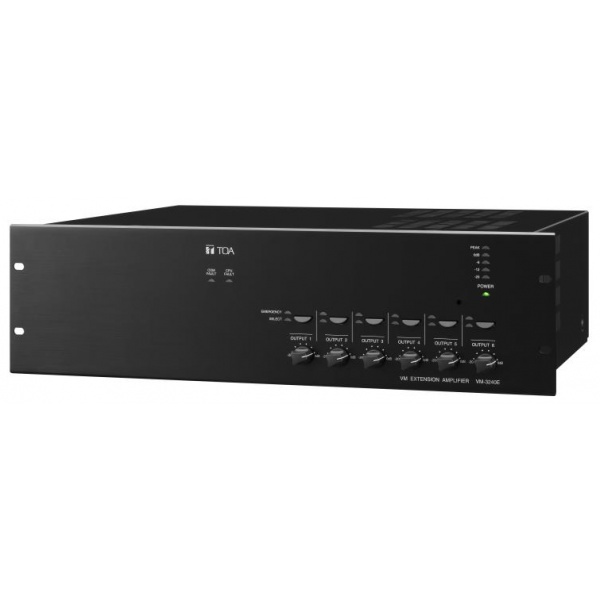

TOA VM-3360E

Brand TOA
Model VM-3360E
Voice Alarm System Extension
Dimensions 482 (W) × 132.6 (H) × 407 (D) mm (18.98″ × 5.22″ × 16.02″)

Category:

Description

Brand TOA
Model VM-3360E

Power Source 230 V AC, 50/60 Hz
Power Consumption 850 W (with rated output signal), 260 W (according to EN60065)
Rated Output 240W
Frequency Response 50 Hz – 20 kHz, ±3 dB (at 1/3 rated output)
S/N Ratio 85 dB or more
Inputs Input External amplifier input: 100 V line, removable terminal block (14 pins)

Outputs Speaker output 1 – 2: Max. (240 W) per output
Speaker output 3 – 6: Max. (120 W) per output
Speaker output 1 – 6: Total within 240 W, removable terminal block (14 pins)
Allowable minimum load: 500 Ω (20 W) at 100 V line for speaker line failure detection
Direct output: Direct output from internal or external amplifier,
removable terminal block (16 pins)

ATT Control Relay contact 1-6, 125 V AC or 30 V DC, total under 5 A,
removable terminal block (16 pins)

Power Input/Output Power in: Connecting the VX-2000DS only (operating range: 20 – 40 V DC)
PS out: 28 V DC/18 A
M4 screw terminal, distance between barriers: 11 mm (0.43″)
DC24V Output 24 V DC, Maximum feeding current 0.3 A
Operating Temperature -5 ℃ to +45 ℃ (23 ゜F to 113 ゜F)
Dimensions 482 (W) × 132.6 (H) × 407 (D) mm (18.98″ × 5.22″ × 16.02″)
